- Floor Stand Type Glue Filling Machine (ccm module)
-
Product Number：DJ771CCM
Product Brand：PINSU
Product Description：
Floor Stand Type Glue Filling Machine(ccm module) is applied to Crystal stickers, labels, drive power, transformers, PCBs, negative ion generators, capacitors, lithium batteries, etc.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
Floor Stand Type Glue Filling Machine(ccm module)is mainly driven by stepping motor and run by belt. The running speed is 250mm/s, and the repeatability is±0.05mm. The machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on, and the filling speed is 2-4 times of manual filling.
【Machine Parameter】
|
Machine name |
Floor Stand Type Glue Filling Machine (ccm module) |
|
Machine model |
PS-DJ771CCM |
|
Effective stroke（X/Y/Z） |
X700*Y700*Z100mm |
|
Operation speed |
250mm/s |
|
Operation mode |
The stepper motor drives the belt |
|
Electronic control system |
Touch screen +PLC(with teaching box) |
|
Repeatability |
±0.05mm |
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Glue filling speed |
5-100g/5S(Speed is adjustable and varies according to glue characteristics) |
|
Mixed model |
Static mixing or dynamic mixing |
|
Glue dispensing accuracy |
±2% |
|
Measurement method |
Gear pump or screw pump (optional) |
|
Measurement accuracy |
±2% |
|
Glue viscosity |
<8000CPS |
|
pressure level |
MAX≤2.6Mpa |
|
Charging bucket capacity |
20L/30L/50L |
|
Cleaning bucket capacity |
5L |
|
Material of charging bucket |
304 stainless steel |
|
機器電源 Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
2000-4000w |
|
Operating pressure range |
0.5-0.8mpa |
【Machine Feature 】
1. Fast running speed, high Repeatability.
2. AB glue automatic proportioning, automatic mixing;
3. The machine comes with a cleaning device, which can clean the mixing valve and mixing tube for next time use;
4. The system comes with anti-curing function, and the automatic glue discharge time can be set;
5. With liquid level sensor, when the glue is not enough, automatic alarm to remind to add glue.

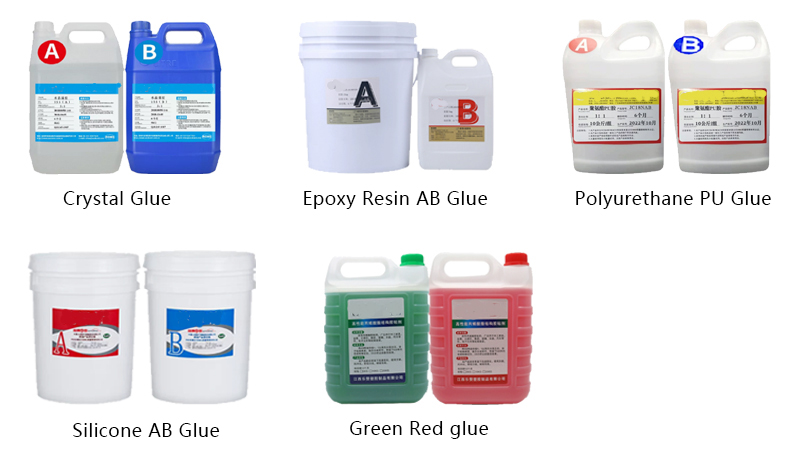

【Applicable Glue】
Floor Stand Type Glue Filling Machine(ccm module) is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.

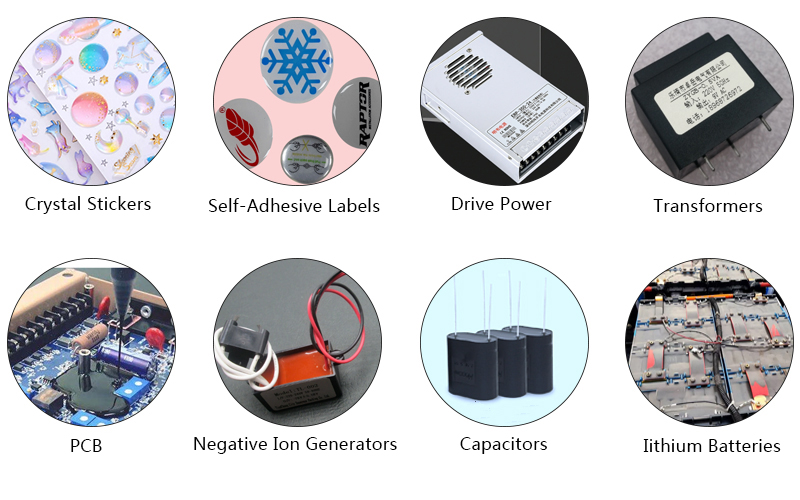

【Scope of Application】
Floor Stand Type Glue Filling Machine (ccm module) is applied to Crystal stickers, labels, drive power, transformers, PCBs, negative ion generators, capacitors, lithium batteries, etc.
