- Desktop 4-axis auto soldering machine
-
Product Number：331ZMR/441ZMR/551ZMR
Product Brand：PS
Product Description：
Four-axis rotary automatic soldering machine realizes inclined soldering of products, mainly used for soldering of electronics, electrical appliances, lighting fixtures, wire materials, etc. It can realize spot welding, dragging soldering and other soldering processes to meet the soldering process requirements of products.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
【Machine Description】
Desktop four-axis automatic soldering machine can effectively solve the manufacturing enterprise human labor shortage, low productivity, high labor costs, high material costs, management difficulties and many other problems. Perfect soldering process settings to meet different processing needs, it is widely used in automotive electronics, digital, electronics, electro-acoustic, LCD, PCB circuit boards, connectors, RJ/network transformers and other products.
【Machine Parameter】
|
Machine name |
|||
|
Machine model |
331ZMR |
441ZMR |
551ZMR |
|
Effective stroke（X/Y/Z） |
300*300*100mm |
400*400*100mm |
500*500*100mm |
|
R axis |
360-degree rotation |
||
|
Operation speed |
Belt max300mm/s screw max500mm/s |
||
|
Repeatability |
Belt ±0.05mm，screw ±0.01mm |
||
|
Information storage space |
256MB |
||
|
Applicable tin wire diameter |
0.5/0.6/0.8/1.0/1.2/1.5(mm) |
||
|
Supported Project Documents |
CAD/CORELDRAW |
||
|
Electronic control system |
Intelligent motion control card (with teaching box) |
||
|
Operating pressure range |
0.5-0.8mpa |
||
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
||
|
Machine Power |
150w |
||
|
Temperature control range |
0-450 degrees |
||
|
Operation mode |
The stepper motor drives the belt or servo motor driven lead screw |
||
【Machine Feature 】
1. Flexible and diversified soldering methods, with spot soldering, drag soldering and other functions;
2. The mechanical arms of the equipment are all aluminum profiles, which are non-deformed, non-rusting and run stably;
3. The equipment writing program can be copied, shortening the program writing time;
4. The equipment has automatic cleaning function, which can stabilize the quality of solder processing and extend the service life of the machine;
5. Multi-axis linkage manipulator, all using precision stepping motor drive and advanced motion control algorithms, effectively enhance the Repeatability.

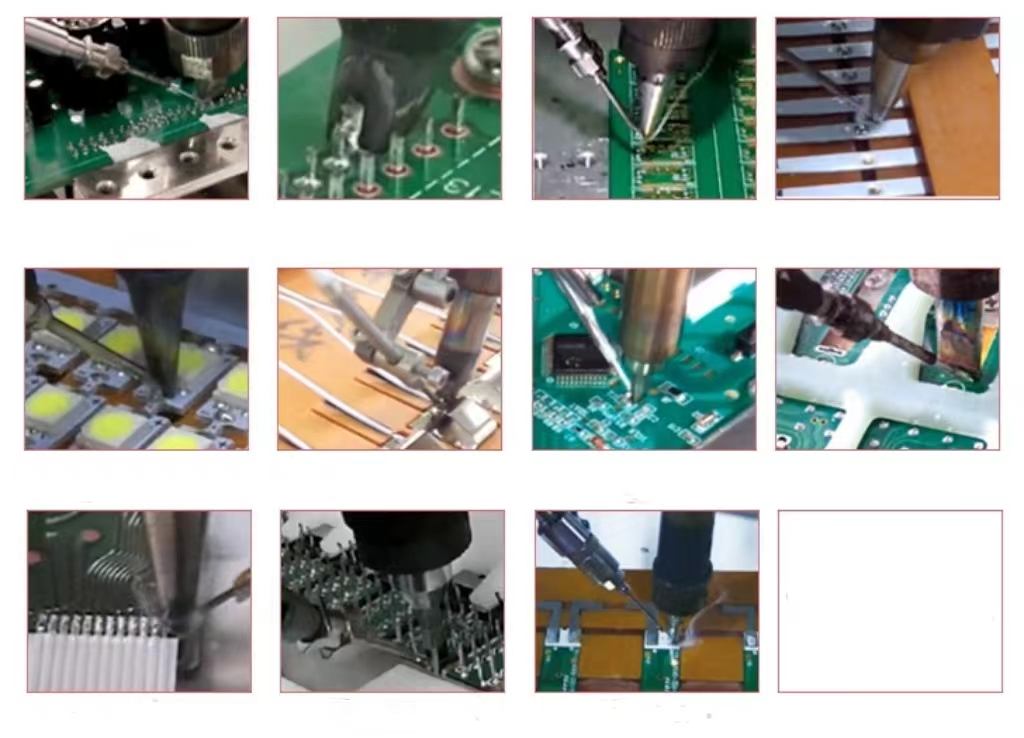

【Scope of Application】
Desktop 4-axis auto soldering machine mainly used for automotive electronics, digital, electronics, electro-acoustic, LCD, PCB circuit boards, connectors, RJ/network transformers and other products.
